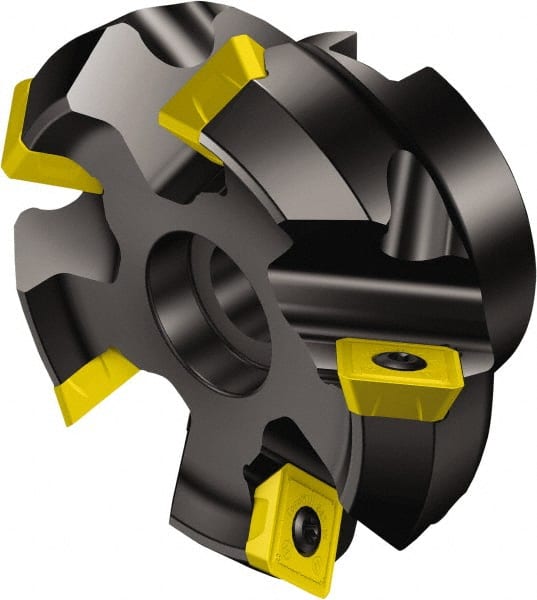

Sandvik Coromant - 203.2mm Cut Diam, 63.5mm Arbor Hole, 6.1mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 20 Inserts, R245-12T3.. Insert, Right Hand Cut, Series CoroMill 245
Item #: 49527963
Brand: Sandvik Coromant
Model #: 5739923
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 203.2 |
| Cutting Diameter (Decimal Inch) | 8 |
| Arbor Hole Diameter (mm) | 63.50 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Lead Angle | 45 |
| Overall Height (mm) | 63 |
| Insert Compatibility | R245-12T3.. |
| Series | CoroMill 245 |
| Maximum Depth of Cut (mm) | 6.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.24 |
| Number of Cutter Inserts | 20 |
| Cutter Style | RA245..Rxx |
| Keyway Width (mm) | 25.70 |
| Keyway Width (Decimal Inch) | 1.0118 |
| Maximum RPM | 7950 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | R245-12T3.. |
| Toolholder Material | Steel |
| Complete Insert Compatibility | R245-12T3.. |
| Maximum RPM | 7950 |
| Toolholder Material | Steel |
| Through Coolant | No |
