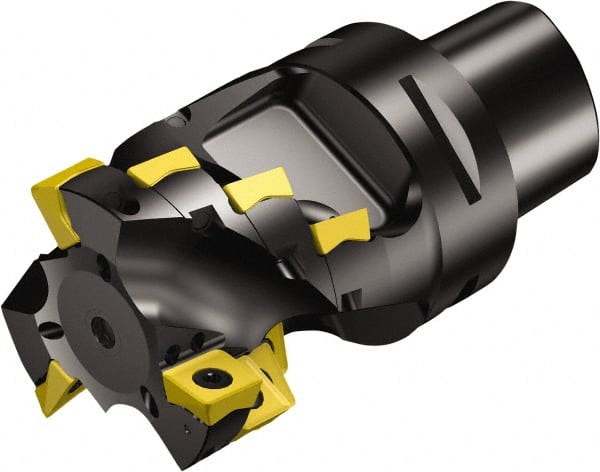

Sandvik Coromant - 63.5mm Cut Diam, 63mm Arbor Diam, 60mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 140mm High, 690-100508M-E-SL & 690-100510M-P-SL Insert Compatibility, Through Coolant, Series CoroMill 690
Item #: 49528060
Brand: Sandvik Coromant
Model #: 5723649
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.50 |
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (mm) | 63.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 140.00 |
| Overall Height (Decimal Inch) | 5.5118 |
| Insert Compatibility | 690-100508M-E-SL; 690-100510M-P-SL |
| Series | CoroMill 690 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 60.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.3622 |
| Cutting Direction | 690-100508M-E-SL |
| Insert Holding Method | Screw |
| Cutter Style | A690..Cx |
| Maximum RPM | 5000 |
| ISO Number | A690-063C6-1060M |
| Complete Insert Compatibility | 690-100508M-E-SL; 690-100510M-P-SL |
| Toolholder Material | Steel |
