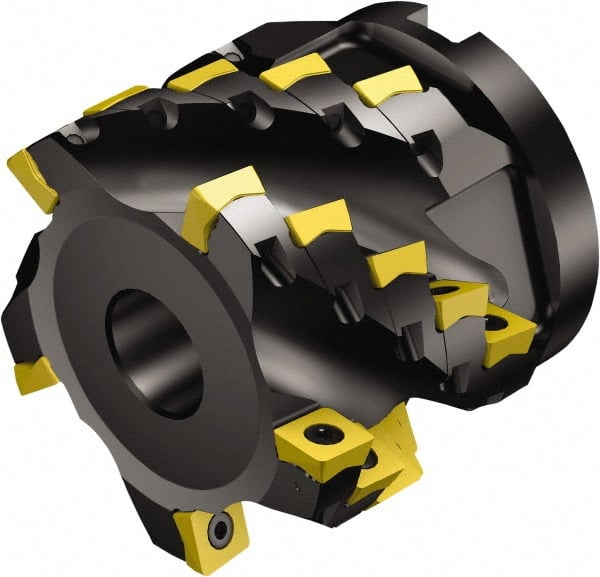

Sandvik Coromant - 50mm Cut Diam, 22mm Arbor Diam, 46mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 75mm High, 690-100508M-E-SL & 690-100510M-P-SL Insert Compatibility, Series CoroMill 690
Item #: 49528086
Brand: Sandvik Coromant
Model #: 5765082
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Overall Height (mm) | 75.00 |
| Overall Height (Decimal Inch) | 2.9528 |
| Insert Compatibility | 690-100508M-E-SL; 690-100510M-P-SL |
| Series | CoroMill 690 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 46.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.8110 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Cutter Style | 690..Qxx |
| Maximum RPM | 5000 |
| ISO Number | 690-050Q22-1046H |
| Complete Insert Compatibility | 690-100508M-E-SL; 690-100510M-P-SL |
| Toolholder Material | Steel |
