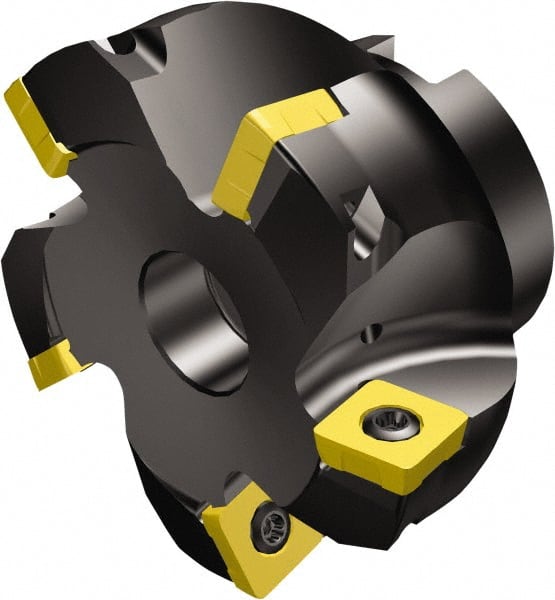

Sandvik Coromant - 4 Inserts, 1.5354" Cutter Diam, 0.0787" Max Depth of Cut, Indexable High-Feed Face Mill - 1.063" Arbor Hole Diam, 0.4882" Keyway Width, R210..Qxx Toolholder, R210-140512M- Inserts, Series CoroMill 210
Item #: 49528755
Brand: Sandvik Coromant
Model #: 5742580
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5354 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Series | CoroMill 210 |
| Cutter Style | R210..Qxx |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | R210-140512M- |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 18300 |
| Maximum Body Diameter (Decimal Inch) | 2.3091 |
| Through Coolant | Yes |
| Complete Insert Compatibility | R210-140512M- |
| Keyway Width (Decimal Inch) | 0.4882 |
