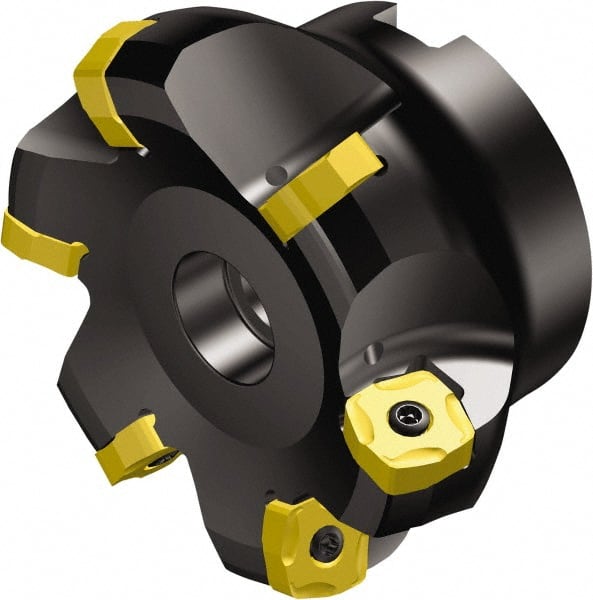

Sandvik Coromant - 63.5mm Cut Diam, 19.05mm Arbor Hole, 6mm Max Depth of Cut, 65° Indexable Chamfer & Angle Face Mill - 6 Inserts, R365-1505ZNE Insert, Right Hand Cut, Series CoroMill 365
Item #: 49529142
Brand: Sandvik Coromant
Model #: 5740282
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.5 |
| Cutting Diameter (Decimal Inch) | 2.5 |
| Arbor Hole Diameter (mm) | 19.05 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 65 |
| Overall Height (mm) | 50 |
| Insert Compatibility | R365-1505ZNE |
| Series | CoroMill 365 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.23622 |
| Number of Cutter Inserts | 6 |
| Cutter Style | R/LA365..Rxx-S |
| Keyway Width (mm) | 8.15 |
| Keyway Width (Decimal Inch) | 0.3209 |
| Maximum RPM | 13500 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | R365-1505ZNE |
| Toolholder Material | Steel |
| Complete Insert Compatibility | R365-1505ZNE |
| Maximum RPM | 13500 |
| Toolholder Material | Steel |
| Through Coolant | Yes |
