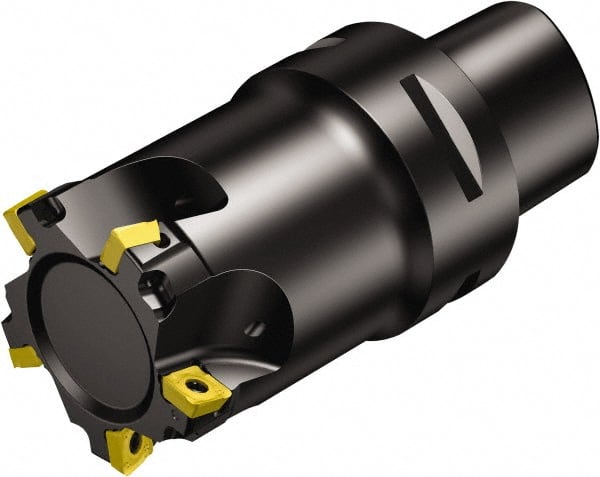

Sandvik Coromant - 8 Inserts, 63.5mm Cut Diam, 63mm Arbor Diam, 5.5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 88.8mm High, 490R-08T308 Insert Compatibility, Through Coolant, Series CoroMill 490
Item #: 49529167
Brand: Sandvik Coromant
Model #: 5723362
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.50 |
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (mm) | 63.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 88.80 |
| Overall Height (Decimal Inch) | 3.4961 |
| Insert Compatibility | 490R-08T308 |
| Series | CoroMill 490 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | A490..Cx |
| Maximum RPM | 20000 |
| ISO Number | A490-063C6-08H |
| Complete Insert Compatibility | 490R-08T308 |
| Toolholder Material | Steel |
