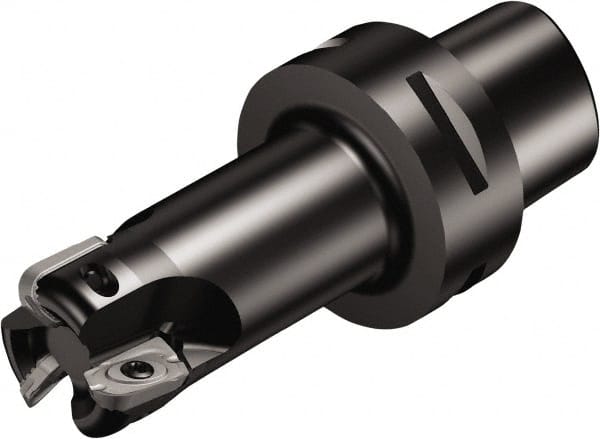

Sandvik Coromant - 2 Inserts, 40mm Cut Diam, 40mm Arbor Diam, 18mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 104mm High, R790-2205.. Insert Compatibility, Through Coolant, Series CoroMill 790
Item #: 49529365
Brand: Sandvik Coromant
Model #: 5747255
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Overall Height (mm) | 104.00 |
| Overall Height (Decimal Inch) | 4.0945 |
| Insert Compatibility | R790-2205.. |
| Series | CoroMill 790 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Cutter Style | R790..Cx |
| Maximum RPM | 37500 |
| ISO Number | R790-040C4S2-22M |
| Complete Insert Compatibility | R790-2205.. |
| Toolholder Material | Steel |
