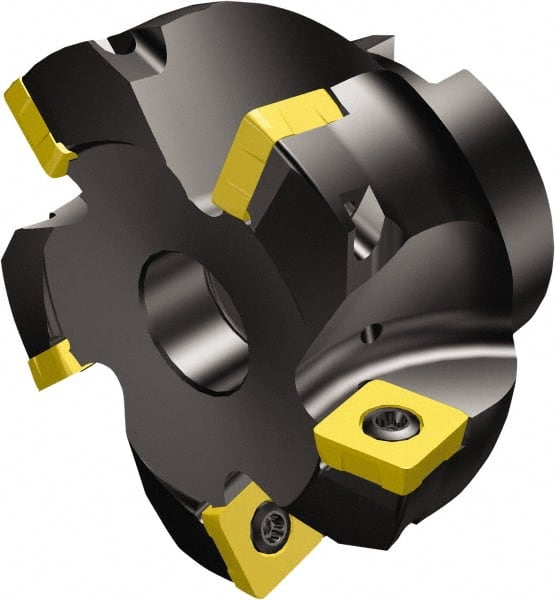

Sandvik Coromant - 7 Inserts, 3.9764" Cutter Diam, 0.0787" Max Depth of Cut, Indexable High-Feed Face Mill - 1.5748" Arbor Hole Diam, 0.6457" Keyway Width, R210..Qxx Toolholder, R210-140512M- Inserts, Series CoroMill 210
Item #: 49529399
Brand: Sandvik Coromant
Model #: 5742687
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.9764 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Series | CoroMill 210 |
| Cutter Style | R210..Qxx |
| Number of Cutter Inserts | 7 |
| Insert Compatibility | R210-140512M- |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 11400 |
| Maximum Body Diameter (Decimal Inch) | 4.7500 |
| Through Coolant | Yes |
| Complete Insert Compatibility | R210-140512M- |
| Keyway Width (Decimal Inch) | 0.6457 |
