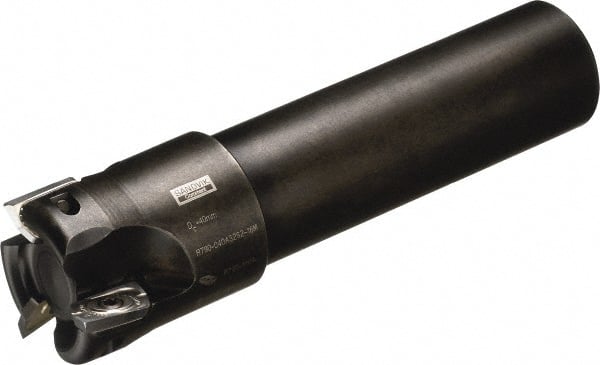

Sandvik Coromant - 2 Inserts, 50.8mm Cut Diam, 31.75mm Arbor Diam, 18mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 165.1mm High, R790-2205.. Insert Compatibility, Through Coolant, Series CoroMill 790
Item #: 49529449
Brand: Sandvik Coromant
Model #: 5738789
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.80 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (mm) | 31.75 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Overall Height (mm) | 165.10 |
| Overall Height (Decimal Inch) | 6.5000 |
| Insert Compatibility | R790-2205.. |
| Series | CoroMill 790 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Cutter Style | RA790..Oxx |
| Maximum RPM | 31400 |
| ISO Number | RA790-050O32S2-22L |
| Complete Insert Compatibility | R790-2205.. |
| Toolholder Material | Steel |
