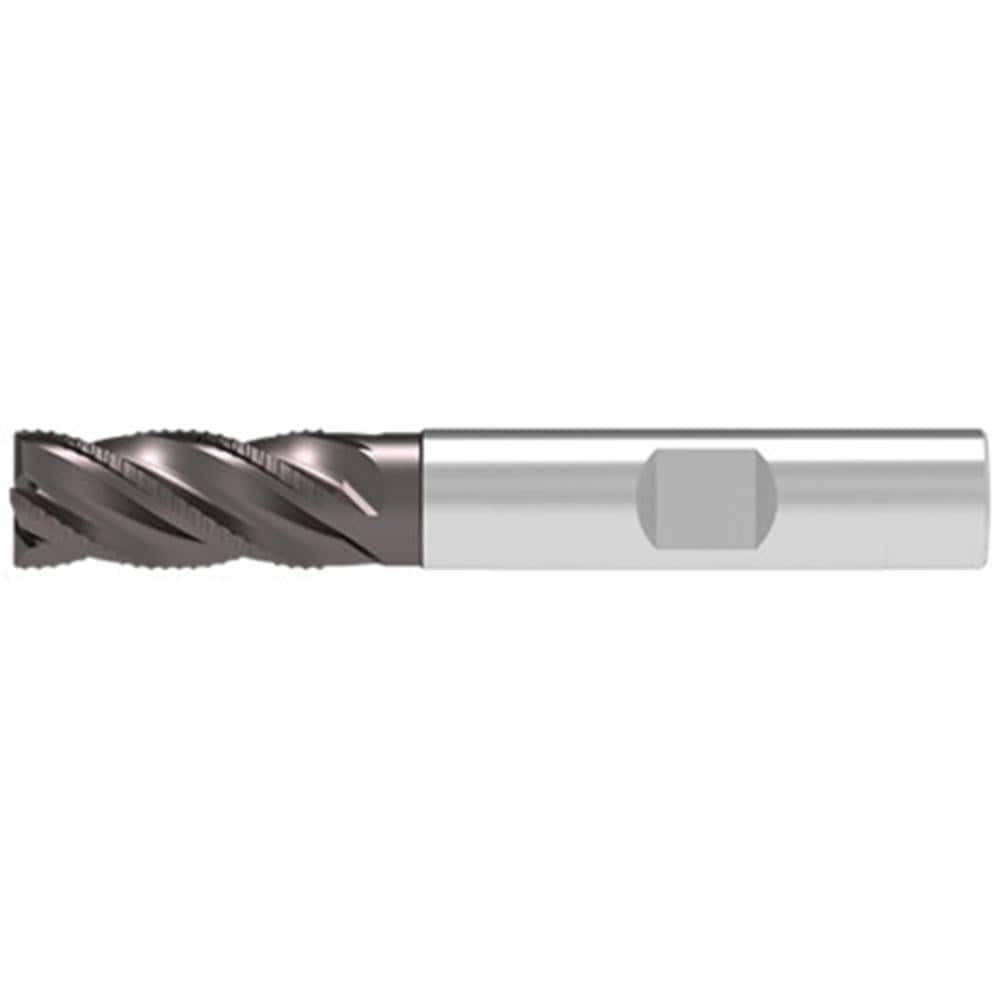

Corner Chamfer End Mill: 4.00 mm Dia, 11.00 mm LOC, 4 Flute, 0.10 mm Chamfer Width, Solid Carbide
Item #: 04638904
Brand: WNT
Model #: 5407700400
Product Specifications
| Mill Diameter (mm) | 4.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 11.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | Ti1000 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Chamfer Width (mm) | 0.10 |
| Overall Length (mm) | 57.00 |
| Coolant Through | No |
| Chipbreaker | No |
| Chamfer Angle | 45.000 |
| Length Type | Long |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 6.00 |
| Neck Diameter (mm) | 3.800 |
| UNSPSC Code | 23241614 |
| Series | 54077 |
