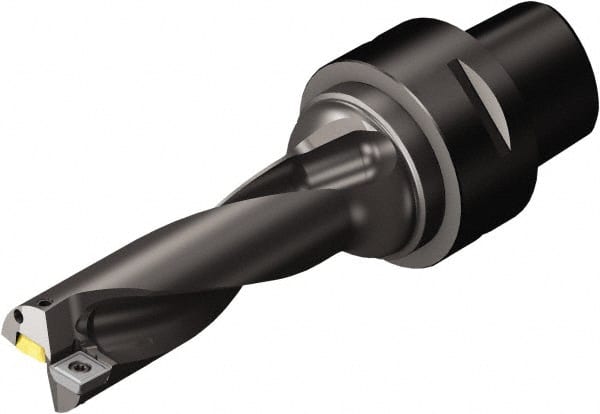

Sandvik Coromant - 119.02mm Max Drill Depth, 3xD, 39.67mm Diam, Indexable Insert Drill - C6 Coromant Shank
Item #: 49532518
Brand: Sandvik Coromant
Model #: 6328089
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..Cx-03 |
| Drill Diameter (mm) | 39.67 |
| Drill Diameter (Decimal Inch) | 1.5620 |
| Maximum Drill Depth (mm) | 119.02 |
| Maximum Drill Depth (Decimal Inch) | 4.6860 |
| Shank Type | Coromant |
| Modular Connection Size | C6 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 1.5620 |
| Maximum Drill Diameter (mm) | 39.67 |
| Overall Length/Projection (mm) | 211.43 |
| Overall Length/Projection (Decimal Inch) | 8.3240 |
| Insert Compatibility | 880-070406H-C-GM; 880-0704W06H-P-GM |
| Flute Length (mm) | 146.41 |
| Flute Length (Decimal Inch) | 5.7640 |
| Body Length (Decimal Inch) | 4.8430 |
| Body Length (mm) | 123.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.92 |
