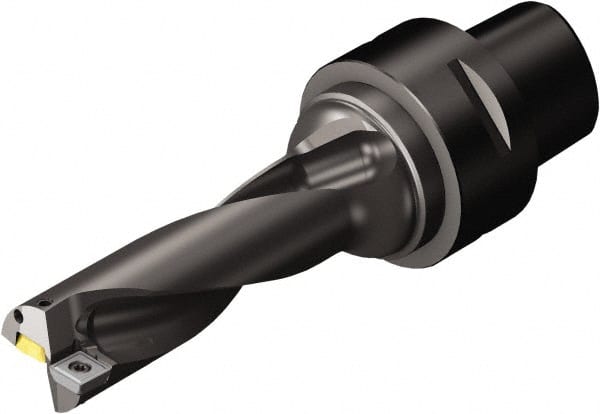

Sandvik Coromant - 80.92mm Max Drill Depth, 3xD, 26.97mm Diam, Indexable Insert Drill - C4 Coromant Shank
Item #: 49532609
Brand: Sandvik Coromant
Model #: 6328001
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..Cx-03 |
| Drill Diameter (mm) | 26.97 |
| Drill Diameter (Decimal Inch) | 1.0620 |
| Maximum Drill Depth (mm) | 80.92 |
| Maximum Drill Depth (Decimal Inch) | 3.1860 |
| Shank Type | Coromant |
| Modular Connection Size | C4 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 1.0620 |
| Maximum Drill Diameter (mm) | 26.97 |
| Overall Length/Projection (mm) | 149.75 |
| Overall Length/Projection (Decimal Inch) | 5.8959 |
| Insert Compatibility | 880-050305H-C-GM; 880-0503W05H-P-GM |
| Flute Length (mm) | 99.77 |
| Flute Length (Decimal Inch) | 3.9280 |
| Body Length (Decimal Inch) | 3.3070 |
| Body Length (mm) | 84.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.75 |
