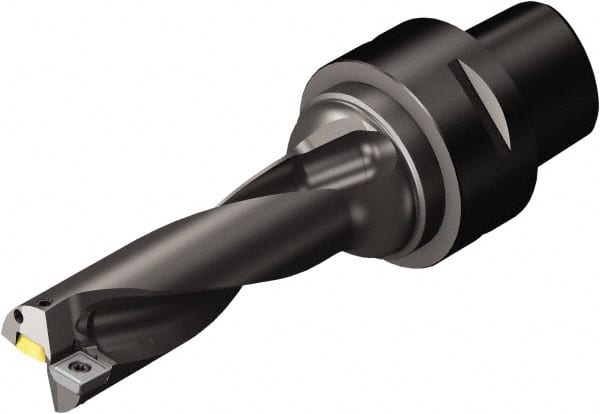

Sandvik Coromant - 71.4mm Max Drill Depth, 3xD, 23.8mm Diam, Indexable Insert Drill - C6 Coromant Shank
Item #: 49532617
Brand: Sandvik Coromant
Model #: 6328069
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..Cx-03 |
| Drill Diameter (mm) | 23.80 |
| Drill Diameter (Decimal Inch) | 0.9370 |
| Maximum Drill Depth (mm) | 71.40 |
| Maximum Drill Depth (Decimal Inch) | 2.8110 |
| Shank Type | Coromant |
| Modular Connection Size | C6 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.9370 |
| Maximum Drill Diameter (mm) | 23.80 |
| Overall Length/Projection (mm) | 153.90 |
| Overall Length/Projection (Decimal Inch) | 6.0591 |
| Insert Compatibility | 880-040305H-C-GM; 880-0403W05H-P-GM |
| Flute Length (mm) | 88.87 |
| Flute Length (Decimal Inch) | 3.4990 |
| Body Length (Decimal Inch) | 2.9530 |
| Body Length (mm) | 75.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.35 |
