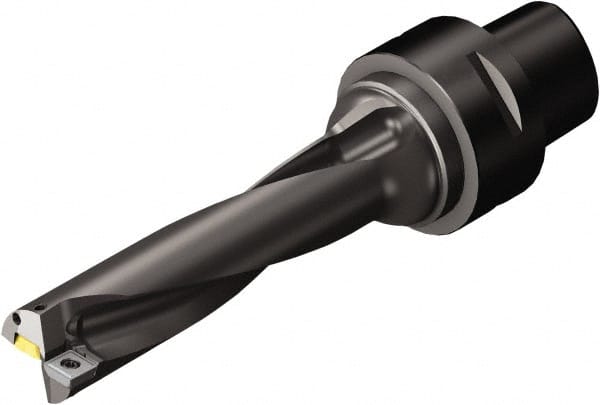

Sandvik Coromant - 76.2mm Max Drill Depth, 4xD, 19.05mm Diam, Indexable Insert Drill - C4 Coromant Shank
Item #: 49532674
Brand: Sandvik Coromant
Model #: 6327992
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..Cx-04 |
| Drill Diameter (mm) | 19.05 |
| Drill Diameter (Decimal Inch) | 0.7500 |
| Maximum Drill Depth (mm) | 76.20 |
| Maximum Drill Depth (Decimal Inch) | 3.0000 |
| Shank Type | Coromant |
| Modular Connection Size | C4 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.7500 |
| Maximum Drill Diameter (mm) | 19.05 |
| Overall Length/Projection (mm) | 140.03 |
| Overall Length/Projection (Decimal Inch) | 5.5129 |
| Insert Compatibility | 880-030305H-C-GM; 880-0303W05H-P-GM |
| Flute Length (mm) | 91.01 |
| Flute Length (Decimal Inch) | 3.5830 |
| Body Length (Decimal Inch) | 3.1490 |
| Body Length (mm) | 80.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.25 |
