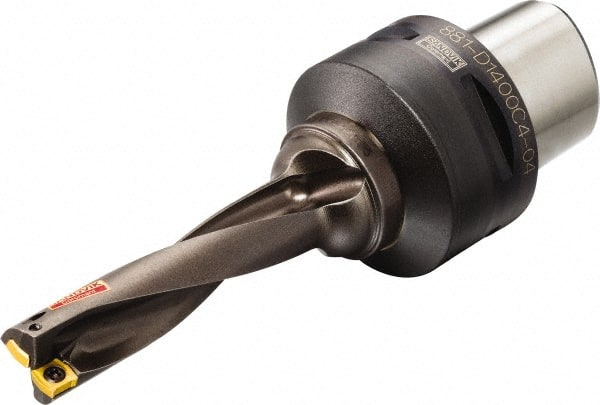

Sandvik Coromant - 76mm Max Drill Depth, 4xD, 19mm Diam, Indexable Insert Drill - C4 Coromant Shank
Item #: 49533094
Brand: Sandvik Coromant
Model #: 5962306
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 881..Cx-04 |
| Drill Diameter (mm) | 19.00 |
| Drill Diameter (Decimal Inch) | 0.7480 |
| Maximum Drill Depth (mm) | 76.00 |
| Maximum Drill Depth (Decimal Inch) | 2.9921 |
| Shank Type | Coromant |
| Modular Connection Size | C4 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.7480 |
| Maximum Drill Diameter (mm) | 19.00 |
| Overall Length/Projection (mm) | 149.00 |
| Overall Length/Projection (Decimal Inch) | 5.8661 |
| Insert Compatibility | 881-03 03 08M-C-GM1; 881-03 03 08M-P-GM1 |
| Body Length (Decimal Inch) | 3.1102 |
| Body Length (mm) | 79.00 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 0.8 |
