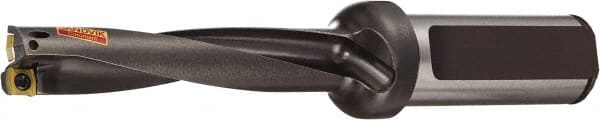

Sandvik Coromant - 85mm Max Drill Depth, 5xD, 17mm Diam, Indexable Insert Drill - 20mm Shank Diam, 20 Cylindrical Shank
Item #: 49533201
Brand: Sandvik Coromant
Model #: 5962274
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 881..Lxx-05 |
| Drill Diameter (mm) | 17.00 |
| Drill Diameter (Decimal Inch) | 0.6693 |
| Maximum Drill Depth (mm) | 85.00 |
| Maximum Drill Depth (Decimal Inch) | 3.3465 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Modular Connection Size | 20 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.7870 |
| Maximum Drill Diameter (mm) | 20.00 |
| Overall Length/Projection (mm) | 153.00 |
| Overall Length/Projection (Decimal Inch) | 6.0236 |
| Insert Compatibility | 881-02 02 04M-C-GM1; 881-02 02 04M-P-GM1 |
| Body Length (Decimal Inch) | 3.4646 |
| Body Length (mm) | 88.00 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 0.5 |
