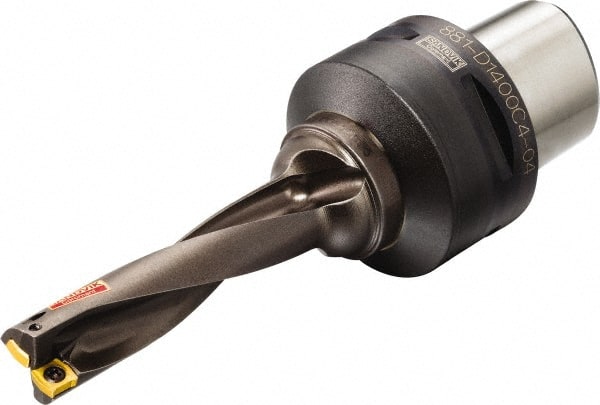

Sandvik Coromant - 64mm Max Drill Depth, 4xD, 16mm Diam, Indexable Insert Drill - C4 Coromant Shank
Item #: 49533326
Brand: Sandvik Coromant
Model #: 5962246
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 881..Cx-04 |
| Drill Diameter (mm) | 16.00 |
| Drill Diameter (Decimal Inch) | 0.6299 |
| Maximum Drill Depth (mm) | 64.00 |
| Maximum Drill Depth (Decimal Inch) | 2.5197 |
| Shank Type | Coromant |
| Modular Connection Size | C4 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.6300 |
| Maximum Drill Diameter (mm) | 16.00 |
| Overall Length/Projection (mm) | 131.00 |
| Overall Length/Projection (Decimal Inch) | 5.1575 |
| Insert Compatibility | 881-02 02 04M-C-GM1; 881-02 02 04M-P-GM1 |
| Body Length (Decimal Inch) | 2.6378 |
| Body Length (mm) | 67.00 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 0.7 |
