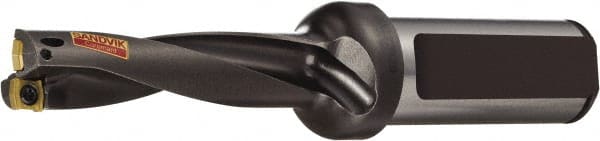

Sandvik Coromant - 62mm Max Drill Depth, 4xD, 15.5mm Diam, Indexable Insert Drill - 20mm Shank Diam, 20 Cylindrical Shank
Item #: 49533334
Brand: Sandvik Coromant
Model #: 5962243
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 881..Lxx-04 |
| Drill Diameter (mm) | 15.50 |
| Drill Diameter (Decimal Inch) | 0.6102 |
| Maximum Drill Depth (mm) | 62.00 |
| Maximum Drill Depth (Decimal Inch) | 2.4409 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Modular Connection Size | 20 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.7870 |
| Maximum Drill Diameter (mm) | 20.00 |
| Overall Length/Projection (mm) | 129.00 |
| Overall Length/Projection (Decimal Inch) | 5.0787 |
| Insert Compatibility | 881-02 02 04M-C-GM1; 881-02 02 04M-P-GM1 |
| Body Length (Decimal Inch) | 2.5591 |
| Body Length (mm) | 65.00 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 0.75 |
