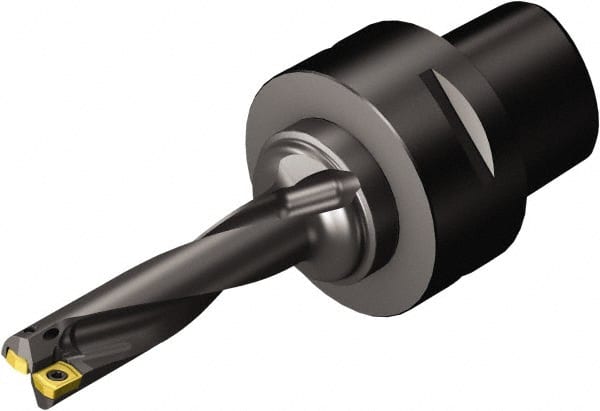

Sandvik Coromant - 54mm Max Drill Depth, 4xD, 13.5mm Diam, Indexable Insert Drill - C6 Coromant Shank
Item #: 49533722
Brand: Sandvik Coromant
Model #: 5764964
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880..Cx-04 (01) |
| Drill Diameter (mm) | 13.50 |
| Drill Diameter (Decimal Inch) | 0.5315 |
| Maximum Drill Depth (mm) | 54.00 |
| Maximum Drill Depth (Decimal Inch) | 2.1260 |
| Shank Type | Coromant |
| Modular Connection Size | C6 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.5310 |
| Maximum Drill Diameter (mm) | 13.50 |
| Overall Length/Projection (mm) | 130.00 |
| Overall Length/Projection (Decimal Inch) | 5.1181 |
| Insert Compatibility | 880-010203H-C-GR; 880-0102W04-P-GR |
| Flute Length (mm) | 64.70 |
| Flute Length (Decimal Inch) | 2.5472 |
| Body Length (Decimal Inch) | 2.2441 |
| Body Length (mm) | 57.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.25 |
