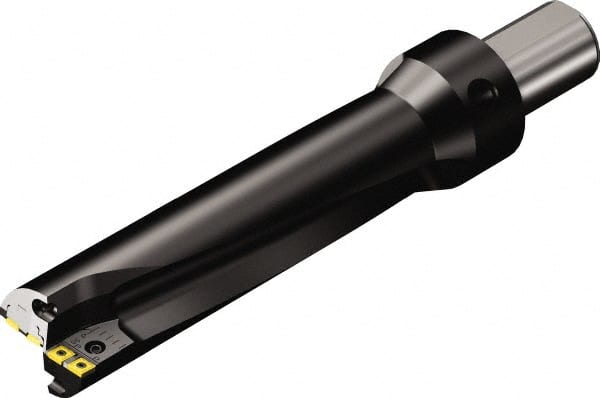

Sandvik Coromant - 252mm Max Drill Depth, 3xD, 84mm Diam, Indexable Insert Drill - 2 Inserts, 63.5mm Shank Diam, 2 Cylindrical Shank
Item #: 49533805
Brand: Sandvik Coromant
Model #: 6660365
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880-D..LXxx-03 |
| Drill Diameter (mm) | 84.00 |
| Drill Diameter (Decimal Inch) | 3.3071 |
| Maximum Drill Depth (mm) | 252.00 |
| Maximum Drill Depth (Decimal Inch) | 9.9213 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 63.50 |
| Shank Diameter (Decimal Inch) | 2.5000 |
| Modular Connection Size | 2 |
| Cutting Direction | 880-0704W06H-P-GM |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 3.0710 |
| Maximum Drill Diameter (mm) | 78.00 |
| Overall Length/Projection (mm) | 433.60 |
| Overall Length/Projection (Decimal Inch) | 17.0709 |
| Insert Compatibility | 880-070406H-C-GM; 880-0704W06H-P-GM |
| Body Length (Decimal Inch) | 11.3232 |
| Body Length (mm) | 288.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0 |
