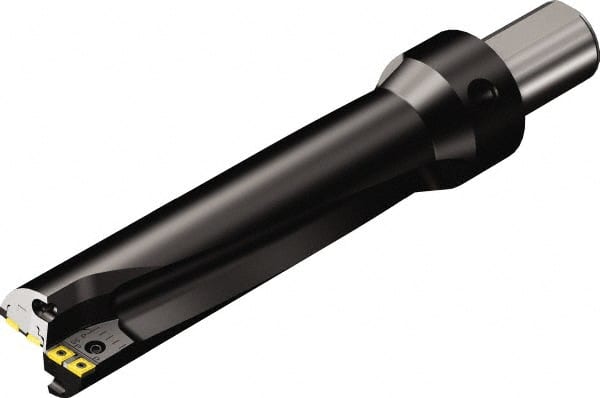

Sandvik Coromant - 296mm Max Drill Depth, 4xD, 72mm Diam, Indexable Insert Drill - 2 Inserts, 50.8mm Shank Diam, 2 Cylindrical Shank
Item #: 49534134
Brand: Sandvik Coromant
Model #: 6660368
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880-D..LXxx-04 |
| Drill Diameter (mm) | 72.00 |
| Drill Diameter (Decimal Inch) | 2.8346 |
| Maximum Drill Depth (mm) | 296.00 |
| Maximum Drill Depth (Decimal Inch) | 11.6535 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 50.80 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Modular Connection Size | 2 |
| Cutting Direction | 880-0604W06H-P-GM |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 2.6770 |
| Maximum Drill Diameter (mm) | 68.00 |
| Overall Length/Projection (mm) | 456.00 |
| Overall Length/Projection (Decimal Inch) | 17.9528 |
| Insert Compatibility | 880-060406H-C-GM; 880-0604W06H-P-GM |
| Body Length (Decimal Inch) | 12.7413 |
| Body Length (mm) | 324.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0 |
