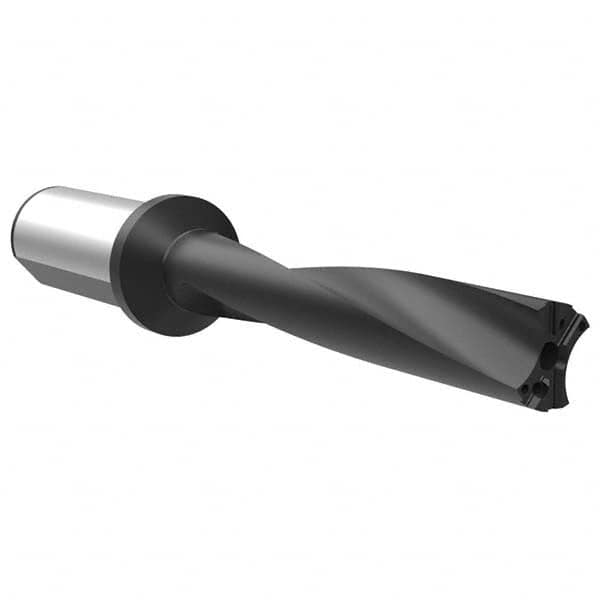

Allied Machine and Engineering - Series APX 38, 5xD, 1-1/2" Diam Flanged Straight Shank, Drill Body
Item #: 31620966
Brand: Allied Machine and Engineering
Model #: W3805H-150F
| Product Specifications | |
|---|---|
| Series | APX 38 |
| Drill Depth by Diameter Ratio | 5xD |
| Shank Taper Size | None |
| Shank Diameter (Inch) | 1-1/2 |
| Toolholder Style | W3805H |
| Nose Diameter (Decimal Inch) | 1.7322 |
| Overall Length (Decimal Inch) | 13.8594 |
| Gage Length (Decimal Inch) | 11.2031 |
| Shank Type | Flanged Straight |
| Shank Length (Decimal Inch) | 2.6875 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | NPT |
| Coolant Hole Thread Size (Inch) | 1/4 |
