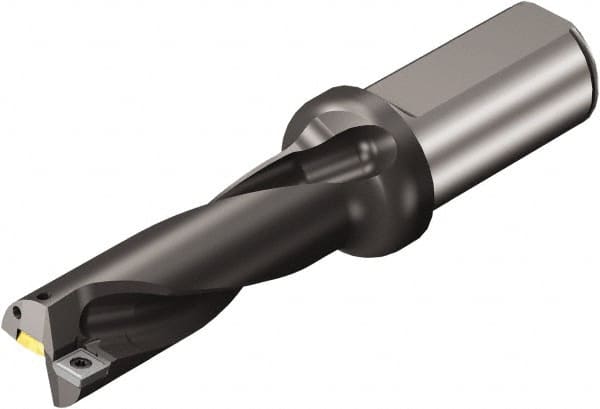

Sandvik Coromant - 180mm Max Drill Depth, 4xD, 45mm Diam, Indexable Insert Drill - 50mm Shank Diam, 50 Cylindrical Shank
Item #: 49534563
Brand: Sandvik Coromant
Model #: 5765476
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880..L-04 |
| Drill Diameter (mm) | 45.00 |
| Drill Diameter (Decimal Inch) | 1.7716 |
| Maximum Drill Depth (mm) | 180.00 |
| Maximum Drill Depth (Decimal Inch) | 7.0866 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Modular Connection Size | 50 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 1.9680 |
| Maximum Drill Diameter (mm) | 50.00 |
| Overall Length/Projection (mm) | 297.00 |
| Overall Length/Projection (Decimal Inch) | 11.6929 |
| Insert Compatibility | 880-080508H-C-GM; 880-0805W08H-P-GM |
| Flute Length (mm) | 211.60 |
| Flute Length (Decimal Inch) | 8.3307 |
| Body Length (Decimal Inch) | 7.2835 |
| Body Length (mm) | 185.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 1.4 |
