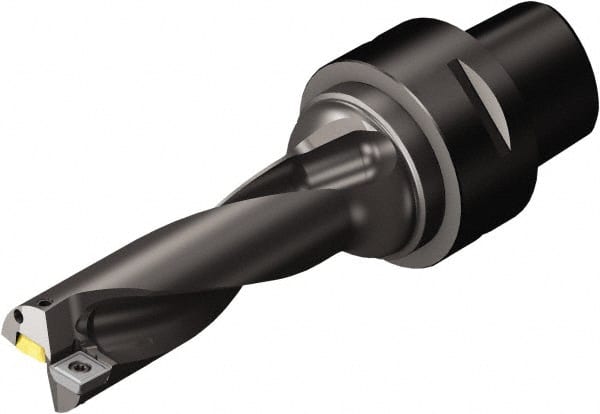

Sandvik Coromant - 54mm Max Drill Depth, 3xD, 18mm Diam, Indexable Insert Drill - C6 Coromant Shank
Item #: 49534605
Brand: Sandvik Coromant
Model #: 5765330
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880..Cx-03 |
| Drill Diameter (mm) | 18.00 |
| Drill Diameter (Decimal Inch) | 0.7087 |
| Maximum Drill Depth (mm) | 54.00 |
| Maximum Drill Depth (Decimal Inch) | 2.1260 |
| Shank Type | Coromant |
| Modular Connection Size | C6 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.7090 |
| Maximum Drill Diameter (mm) | 18.00 |
| Overall Length/Projection (mm) | 133.00 |
| Overall Length/Projection (Decimal Inch) | 5.2362 |
| Insert Compatibility | 880-030305H-C-GM; 880-0303W05H-P-GM |
| Flute Length (mm) | 67.40 |
| Flute Length (Decimal Inch) | 2.6535 |
| Body Length (Decimal Inch) | 2.2441 |
| Body Length (mm) | 57.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.4 |
