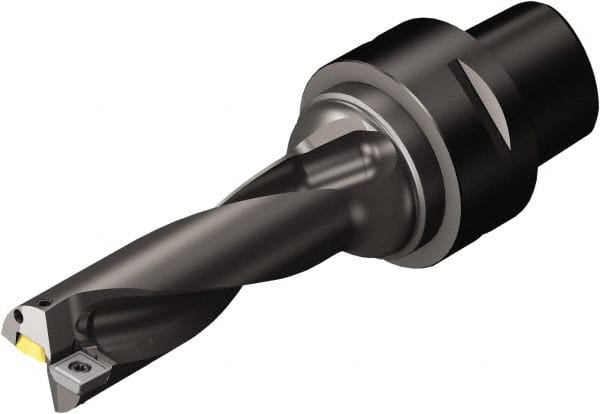

Sandvik Coromant - 48mm Max Drill Depth, 3xD, 16mm Diam, Indexable Insert Drill - C6 Coromant Shank
Item #: 49534662
Brand: Sandvik Coromant
Model #: 5765196
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880..Cx-03 |
| Drill Diameter (mm) | 16.00 |
| Drill Diameter (Decimal Inch) | 0.6299 |
| Maximum Drill Depth (mm) | 48.00 |
| Maximum Drill Depth (Decimal Inch) | 1.8898 |
| Shank Type | Coromant |
| Modular Connection Size | C6 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.6300 |
| Maximum Drill Diameter (mm) | 16.00 |
| Overall Length/Projection (mm) | 126.00 |
| Overall Length/Projection (Decimal Inch) | 4.9606 |
| Insert Compatibility | 880-020204H-C-GM; 880-0202W04H-P-GM |
| Flute Length (mm) | 60.20 |
| Flute Length (Decimal Inch) | 2.3701 |
| Body Length (Decimal Inch) | 2.0079 |
| Body Length (mm) | 51.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.3 |
