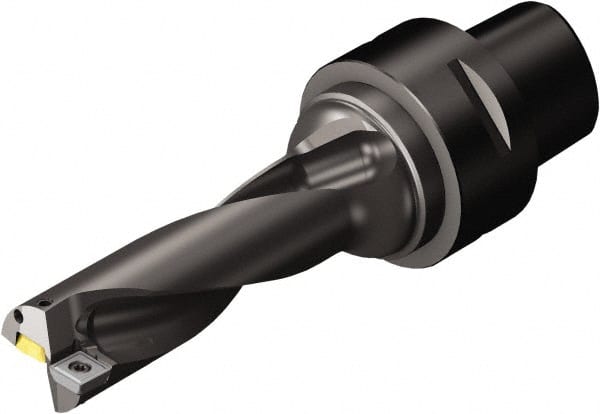

Sandvik Coromant - 59mm Max Drill Depth, 3xD, 19.5mm Diam, Indexable Insert Drill - C4 Coromant Shank
Item #: 49534746
Brand: Sandvik Coromant
Model #: 5765349
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880..Cx-03 |
| Drill Diameter (mm) | 19.50 |
| Drill Diameter (Decimal Inch) | 0.7677 |
| Maximum Drill Depth (mm) | 59.00 |
| Maximum Drill Depth (Decimal Inch) | 2.3228 |
| Shank Type | Coromant |
| Modular Connection Size | C4 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.7680 |
| Maximum Drill Diameter (mm) | 19.50 |
| Overall Length/Projection (mm) | 123.00 |
| Overall Length/Projection (Decimal Inch) | 4.8425 |
| Insert Compatibility | 880-030305H-C-GM; 880-0303W05H-P-GM |
| Flute Length (mm) | 73.30 |
| Flute Length (Decimal Inch) | 2.8858 |
| Body Length (Decimal Inch) | 2.4409 |
| Body Length (mm) | 62.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.3 |
