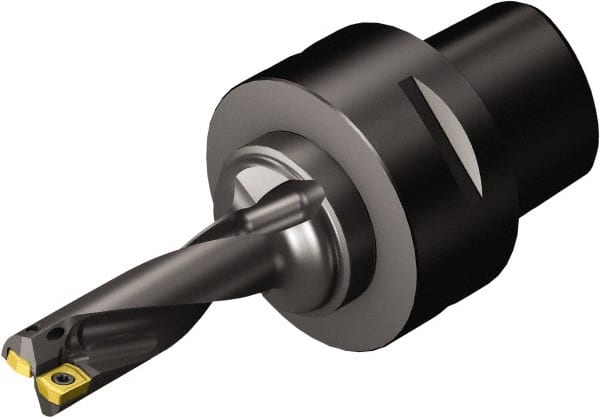

Sandvik Coromant - 39mm Max Drill Depth, 3xD, 13mm Diam, Indexable Insert Drill - C5 Coromant Shank
Item #: 49534910
Brand: Sandvik Coromant
Model #: 5764953
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880..Cx-03 (01) |
| Drill Diameter (mm) | 13.00 |
| Drill Diameter (Decimal Inch) | 0.5118 |
| Maximum Drill Depth (mm) | 39.00 |
| Maximum Drill Depth (Decimal Inch) | 1.5354 |
| Shank Type | Coromant |
| Modular Connection Size | C5 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.5120 |
| Maximum Drill Diameter (mm) | 13.00 |
| Overall Length/Projection (mm) | 105.00 |
| Overall Length/Projection (Decimal Inch) | 4.1339 |
| Insert Compatibility | 880-010203H-C-GR; 880-0102W04-P-GR |
| Flute Length (mm) | 49.40 |
| Flute Length (Decimal Inch) | 1.9449 |
| Body Length (Decimal Inch) | 1.6535 |
| Body Length (mm) | 42.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.25 |
