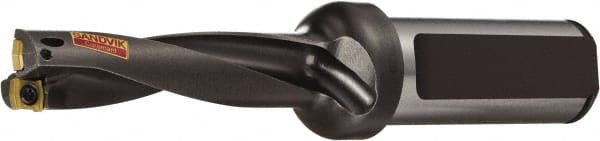

Sandvik Coromant - 70mm Max Drill Depth, 4xD, 17.5mm Diam, Indexable Insert Drill - 25mm Shank Diam, 25 Cylindrical Shank
Item #: 49534951
Brand: Sandvik Coromant
Model #: 5962283
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 881..Lxx-04 |
| Drill Diameter (mm) | 17.50 |
| Drill Diameter (Decimal Inch) | 0.6890 |
| Maximum Drill Depth (mm) | 70.00 |
| Maximum Drill Depth (Decimal Inch) | 2.7559 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Modular Connection Size | 25 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.9840 |
| Maximum Drill Diameter (mm) | 25.00 |
| Overall Length/Projection (mm) | 145.00 |
| Overall Length/Projection (Decimal Inch) | 5.7087 |
| Insert Compatibility (Outside or Peripheral) | LCMX 03.. |
| Insert Compatibility | LCMX 03.. |
| Body Length (Decimal Inch) | 2.8740 |
| Body Length (mm) | 73.00 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 1 |
