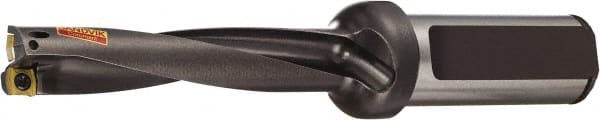

Sandvik Coromant - 98mm Max Drill Depth, 5xD, 19.5mm Diam, Indexable Insert Drill - 25mm Shank Diam, 25 Cylindrical Shank
Item #: 49534969
Brand: Sandvik Coromant
Model #: 5962324
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 881..Lxx-05 |
| Drill Diameter (mm) | 19.50 |
| Drill Diameter (Decimal Inch) | 0.7677 |
| Maximum Drill Depth (mm) | 98.00 |
| Maximum Drill Depth (Decimal Inch) | 3.8583 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Modular Connection Size | 25 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.9840 |
| Maximum Drill Diameter (mm) | 25.00 |
| Overall Length/Projection (mm) | 174.00 |
| Overall Length/Projection (Decimal Inch) | 6.8504 |
| Insert Compatibility | 881-03 03 08M-C-GM1; 881-03 03 08M-P-GM1 |
| Body Length (Decimal Inch) | 3.9764 |
| Body Length (mm) | 101.00 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 0.75 |
