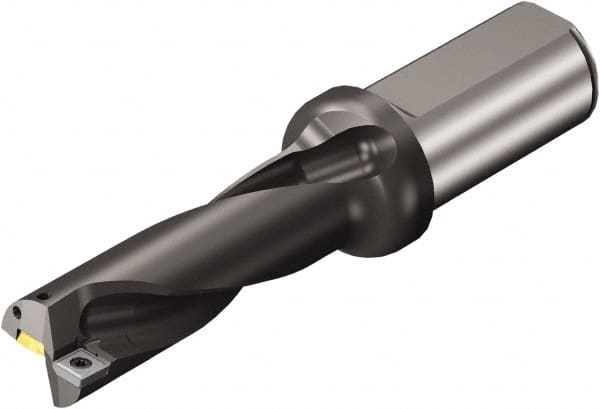

Sandvik Coromant - 196mm Max Drill Depth, 4xD, 49mm Diam, Indexable Insert Drill - 50mm Shank Diam, 50 Cylindrical Shank
Item #: 49535040
Brand: Sandvik Coromant
Model #: 5765485
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880..L-04 |
| Drill Diameter (mm) | 49.00 |
| Drill Diameter (Decimal Inch) | 1.9291 |
| Maximum Drill Depth (mm) | 196.00 |
| Maximum Drill Depth (Decimal Inch) | 7.7165 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Modular Connection Size | 50 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 1.9680 |
| Maximum Drill Diameter (mm) | 50.00 |
| Overall Length/Projection (mm) | 315.00 |
| Overall Length/Projection (Decimal Inch) | 12.4016 |
| Insert Compatibility | 880-080508H-C-GM; 880-0805W08H-P-GM |
| Flute Length (mm) | 230.00 |
| Flute Length (Decimal Inch) | 9.0551 |
| Body Length (Decimal Inch) | 7.9134 |
| Body Length (mm) | 201.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.9 |
