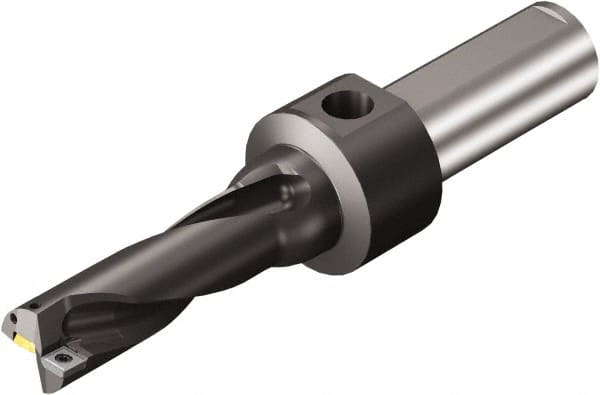

Sandvik Coromant - 161.93mm Max Drill Depth, 3xD, 53.98mm Diam, Indexable Insert Drill - 38.1mm Shank Diam, 1.5 Cylindrical Shank
Item #: 49535156
Brand: Sandvik Coromant
Model #: 5723395
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..Pxx-03 |
| Drill Diameter (mm) | 53.98 |
| Drill Diameter (Decimal Inch) | 2.1250 |
| Maximum Drill Depth (mm) | 161.93 |
| Maximum Drill Depth (Decimal Inch) | 6.3750 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 38.10 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Modular Connection Size | 1.5 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 2.1250 |
| Maximum Drill Diameter (mm) | 53.98 |
| Overall Length/Projection (mm) | 317.19 |
| Overall Length/Projection (Decimal Inch) | 12.4880 |
| Insert Compatibility | 880-090608H-C-GM; 880-0906W08H-P-GM |
| Flute Length (mm) | 198.99 |
| Flute Length (Decimal Inch) | 7.8343 |
| Body Length (Decimal Inch) | 6.5750 |
| Body Length (mm) | 167.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 1.875 |
