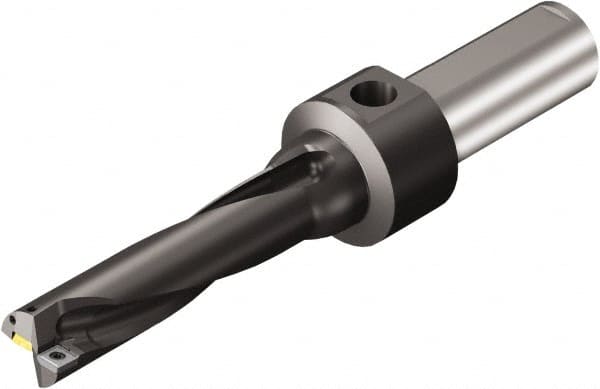

Sandvik Coromant - 158.7mm Max Drill Depth, 4xD, 39.67mm Diam, Indexable Insert Drill - 38.1mm Shank Diam, 1.5 Cylindrical Shank
Item #: 49535172
Brand: Sandvik Coromant
Model #: 5723299
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..Pxx-04 |
| Drill Diameter (mm) | 39.67 |
| Drill Diameter (Decimal Inch) | 1.5620 |
| Maximum Drill Depth (mm) | 158.70 |
| Maximum Drill Depth (Decimal Inch) | 6.2480 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 38.10 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Modular Connection Size | 1.5 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 1.5620 |
| Maximum Drill Diameter (mm) | 39.67 |
| Overall Length/Projection (mm) | 299.62 |
| Overall Length/Projection (Decimal Inch) | 11.7960 |
| Insert Compatibility | 880-070406H-C-GM; 880-0704W06H-P-GM |
| Flute Length (mm) | 186.40 |
| Flute Length (Decimal Inch) | 7.3385 |
| Body Length (Decimal Inch) | 6.4170 |
| Body Length (mm) | 163.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.92 |
