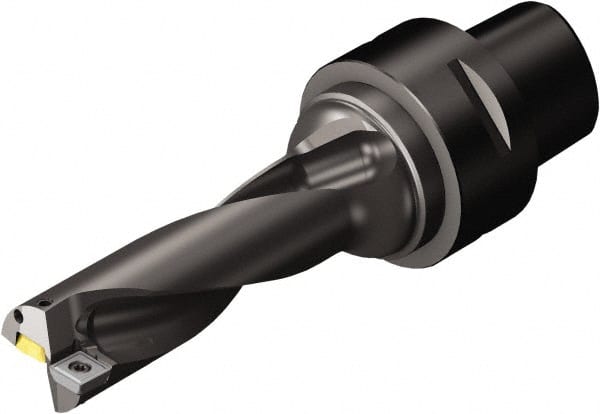

Sandvik Coromant - 57.15mm Max Drill Depth, 3xD, 19.05mm Diam, Indexable Insert Drill - C4 Coromant Shank
Item #: 49535206
Brand: Sandvik Coromant
Model #: 6327991
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..Cx-03 |
| Drill Diameter (mm) | 19.05 |
| Drill Diameter (Decimal Inch) | 0.7500 |
| Maximum Drill Depth (mm) | 57.15 |
| Maximum Drill Depth (Decimal Inch) | 2.2500 |
| Shank Type | Coromant |
| Modular Connection Size | C4 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.7500 |
| Maximum Drill Diameter (mm) | 19.05 |
| Overall Length/Projection (mm) | 121.05 |
| Overall Length/Projection (Decimal Inch) | 4.7659 |
| Insert Compatibility | 880-030305H-C-GM; 880-0303W05H-P-GM |
| Flute Length (mm) | 72.03 |
| Flute Length (Decimal Inch) | 2.8360 |
| Body Length (Decimal Inch) | 2.4020 |
| Body Length (mm) | 61.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.25 |
