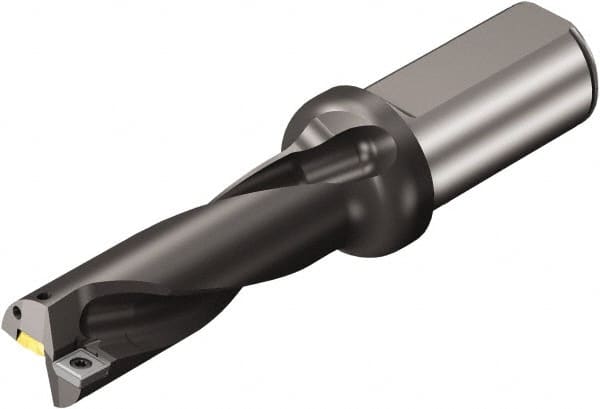

Sandvik Coromant - 162mm Max Drill Depth, 3xD, 54mm Diam, Indexable Insert Drill - 40mm Shank Diam, 40 Cylindrical Shank
Item #: 49536147
Brand: Sandvik Coromant
Model #: 5765553
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880..L-03 |
| Drill Diameter (mm) | 54.00 |
| Drill Diameter (Decimal Inch) | 2.1260 |
| Maximum Drill Depth (mm) | 162.00 |
| Maximum Drill Depth (Decimal Inch) | 6.3780 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Modular Connection Size | 40 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 2.1260 |
| Maximum Drill Diameter (mm) | 54.00 |
| Overall Length/Projection (mm) | 274.00 |
| Overall Length/Projection (Decimal Inch) | 10.7874 |
| Insert Compatibility | 880-090608H-C-GM; 880-0906W08H-P-GM |
| Flute Length (mm) | 199.00 |
| Flute Length (Decimal Inch) | 7.8346 |
| Body Length (Decimal Inch) | 6.5748 |
| Body Length (mm) | 167.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 1.9 |
