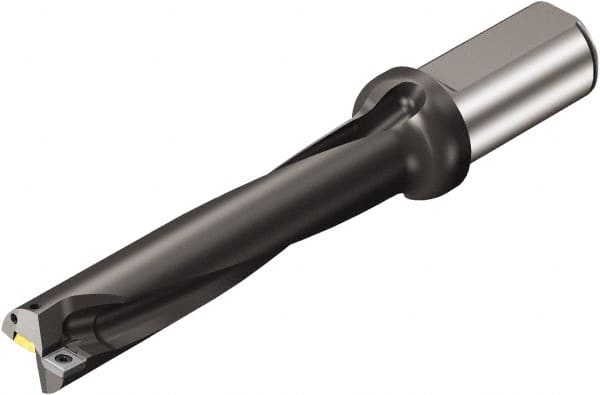

Sandvik Coromant - 83mm Max Drill Depth, 5xD, 16.5mm Diam, Indexable Insert Drill - 20mm Shank Diam, 20 Cylindrical Shank
Item #: 49536246
Brand: Sandvik Coromant
Model #: 5765191
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880..L-05 |
| Drill Diameter (mm) | 16.50 |
| Drill Diameter (Decimal Inch) | 0.6496 |
| Maximum Drill Depth (mm) | 83.00 |
| Maximum Drill Depth (Decimal Inch) | 3.2677 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Modular Connection Size | 20 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.7870 |
| Maximum Drill Diameter (mm) | 20.00 |
| Overall Length/Projection (mm) | 151.00 |
| Overall Length/Projection (Decimal Inch) | 5.9449 |
| Insert Compatibility | 880-030305H-C-GM; 880-0303W05H-P-GM |
| Flute Length (mm) | 95.50 |
| Flute Length (Decimal Inch) | 3.7598 |
| Body Length (Decimal Inch) | 3.3858 |
| Body Length (mm) | 86.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.6 |
