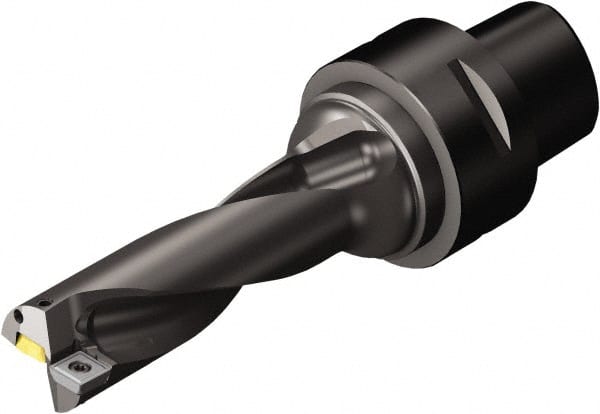

Sandvik Coromant - 95.25mm Max Drill Depth, 3xD, 31.75mm Diam, Indexable Insert Drill - C6 Coromant Shank
Item #: 49536287
Brand: Sandvik Coromant
Model #: 6328079
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..Cx-03 |
| Drill Diameter (mm) | 31.75 |
| Drill Diameter (Decimal Inch) | 1.2500 |
| Maximum Drill Depth (mm) | 95.25 |
| Maximum Drill Depth (Decimal Inch) | 3.7500 |
| Shank Type | Coromant |
| Modular Connection Size | C6 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 1.2500 |
| Maximum Drill Diameter (mm) | 31.75 |
| Overall Length/Projection (mm) | 182.68 |
| Overall Length/Projection (Decimal Inch) | 7.1921 |
| Insert Compatibility | 880-060406H-C-GM; 880-0604W06H-P-GM |
| Flute Length (mm) | 117.65 |
| Flute Length (Decimal Inch) | 4.6320 |
| Body Length (Decimal Inch) | 3.8980 |
| Body Length (mm) | 99.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.9 |
