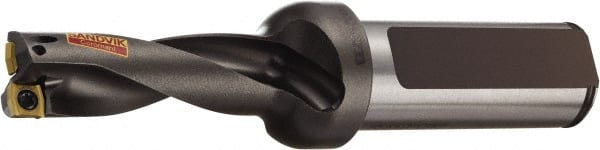

Sandvik Coromant - 69mm Max Drill Depth, 3xD, 23mm Diam, Indexable Insert Drill - 25mm Shank Diam, 25 Cylindrical Shank
Item #: 49536295
Brand: Sandvik Coromant
Model #: 5962365
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 881..Lxx-03 |
| Drill Diameter (mm) | 23.00 |
| Drill Diameter (Decimal Inch) | 0.9055 |
| Maximum Drill Depth (mm) | 69.00 |
| Maximum Drill Depth (Decimal Inch) | 2.7165 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Modular Connection Size | 25 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.9840 |
| Maximum Drill Diameter (mm) | 25.00 |
| Overall Length/Projection (mm) | 147.00 |
| Overall Length/Projection (Decimal Inch) | 5.7874 |
| Insert Compatibility | 881-04 03 08M-C-GM1; 881-04 03 08M-P-GM1 |
| Body Length (Decimal Inch) | 2.8346 |
| Body Length (mm) | 72.00 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 1 |
