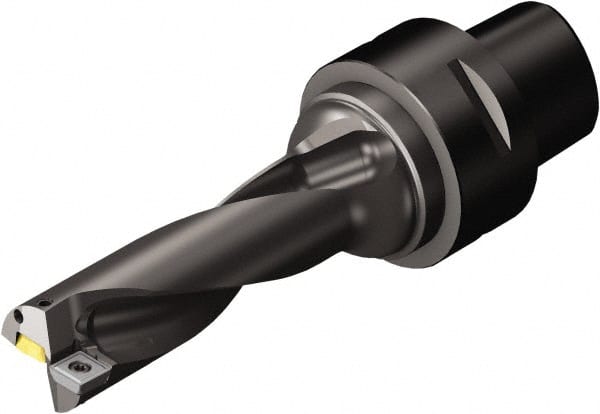

Sandvik Coromant - 90.45mm Max Drill Depth, 3xD, 30.15mm Diam, Indexable Insert Drill - C4 Coromant Shank
Item #: 49536303
Brand: Sandvik Coromant
Model #: 6328005
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..Cx-03 |
| Drill Diameter (mm) | 30.15 |
| Drill Diameter (Decimal Inch) | 1.1870 |
| Maximum Drill Depth (mm) | 90.45 |
| Maximum Drill Depth (Decimal Inch) | 3.5610 |
| Shank Type | Coromant |
| Modular Connection Size | C4 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 1.1870 |
| Maximum Drill Diameter (mm) | 30.15 |
| Overall Length/Projection (mm) | 160.78 |
| Overall Length/Projection (Decimal Inch) | 6.3299 |
| Insert Compatibility | 880-060406H-C-GM; 880-0604W06H-P-GM |
| Flute Length (mm) | 111.66 |
| Flute Length (Decimal Inch) | 4.3960 |
| Body Length (Decimal Inch) | 3.7000 |
| Body Length (mm) | 94.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 1.1 |
