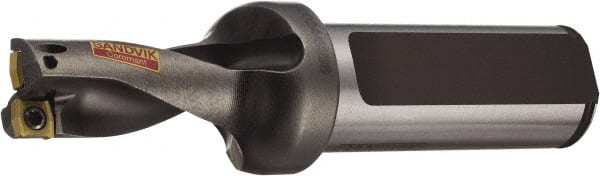

Sandvik Coromant - 44.45mm Max Drill Depth, 2xD, 22.23mm Diam, Indexable Insert Drill - 25.4mm Shank Diam, 1 Cylindrical Shank
Item #: 49536329
Brand: Sandvik Coromant
Model #: 5962405
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A881..LXxx-02 |
| Drill Diameter (mm) | 22.23 |
| Drill Diameter (Decimal Inch) | 0.8750 |
| Maximum Drill Depth (mm) | 44.45 |
| Maximum Drill Depth (Decimal Inch) | 1.7500 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Modular Connection Size | 1 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 1.0000 |
| Maximum Drill Diameter (mm) | 25.40 |
| Overall Length/Projection (mm) | 122.80 |
| Overall Length/Projection (Decimal Inch) | 4.8347 |
| Insert Compatibility | 881-04 03 08M-C-GM1; 881-04 03 08M-P-GM1 |
| Body Length (Decimal Inch) | 1.8820 |
| Body Length (mm) | 48.00 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 1.1938 |
