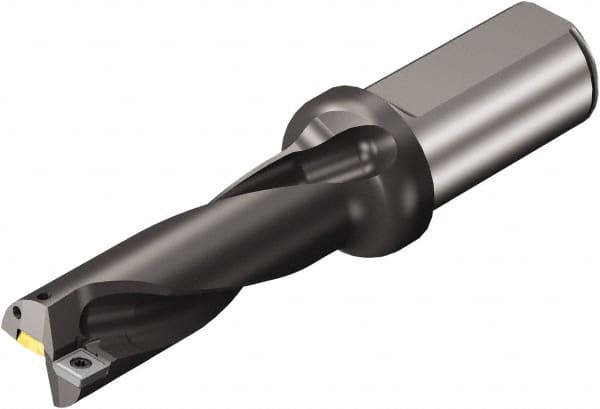

Sandvik Coromant - 212mm Max Drill Depth, 4xD, 53mm Diam, Indexable Insert Drill - 50mm Shank Diam, 50 Cylindrical Shank
Item #: 49536444
Brand: Sandvik Coromant
Model #: 5765547
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880..L-04 |
| Drill Diameter (mm) | 53.00 |
| Drill Diameter (Decimal Inch) | 2.0866 |
| Maximum Drill Depth (mm) | 212.00 |
| Maximum Drill Depth (Decimal Inch) | 8.3465 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Modular Connection Size | 50 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 2.0870 |
| Maximum Drill Diameter (mm) | 53.00 |
| Overall Length/Projection (mm) | 334.00 |
| Overall Length/Projection (Decimal Inch) | 13.1496 |
| Insert Compatibility | 880-090608H-C-GM; 880-0906W08H-P-GM |
| Flute Length (mm) | 248.40 |
| Flute Length (Decimal Inch) | 9.7795 |
| Body Length (Decimal Inch) | 8.5433 |
| Body Length (mm) | 217.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 2 |
