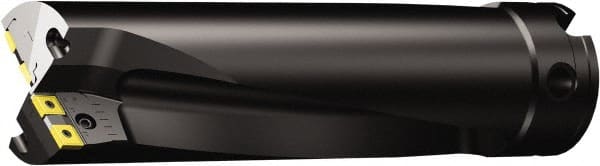

Sandvik Coromant - 207mm Max Drill Depth, 3xD, 66mm Diam, Indexable Insert Drill - 2 Inserts, 80 Varilock Shank
Item #: 49536501
Brand: Sandvik Coromant
Model #: 6770827
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880-D..Vxx-03 |
| Drill Diameter (mm) | 66.00 |
| Drill Diameter (Decimal Inch) | 2.5984 |
| Maximum Drill Depth (mm) | 207.00 |
| Maximum Drill Depth (Decimal Inch) | 8.1496 |
| Shank Type | Varilock |
| Modular Connection Size | 80 |
| Cutting Direction | 880-0604W06H-P-GM |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 2.4800 |
| Maximum Drill Diameter (mm) | 63.00 |
| Overall Length/Projection (mm) | 295.00 |
| Overall Length/Projection (Decimal Inch) | 11.6142 |
| Insert Compatibility | 880-060406H-C-GM; 880-0604W06H-P-GM |
| Body Length (Decimal Inch) | 8.3768 |
| Body Length (mm) | 213.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0 |
