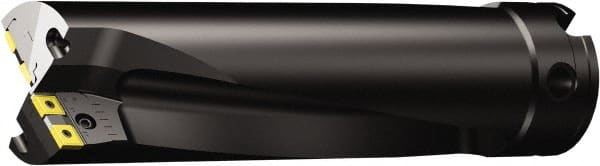

Sandvik Coromant - 222mm Max Drill Depth, 3xD, 74mm Diam, Indexable Insert Drill - 1 Insert, 80 Varilock Shank
Item #: 49536618
Brand: Sandvik Coromant
Model #: 6770831
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880-D..Vxx-03 |
| Drill Diameter (mm) | 74.00 |
| Drill Diameter (Decimal Inch) | 2.9134 |
| Maximum Drill Depth (mm) | 222.00 |
| Maximum Drill Depth (Decimal Inch) | 8.7402 |
| Shank Type | Varilock |
| Modular Connection Size | 80 |
| Cutting Direction | 880-0604W06H-P-GM |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 1 |
| Maximum Drill Diameter (Decimal Inch) | 2.6770 |
| Maximum Drill Diameter (mm) | 68.00 |
| Overall Length/Projection (mm) | 320.00 |
| Overall Length/Projection (Decimal Inch) | 12.5984 |
| Insert Compatibility | 880-060406H-C-GM; 880-0704W06H-P-GM |
| Body Length (Decimal Inch) | 9.8279 |
| Body Length (mm) | 250.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0 |
