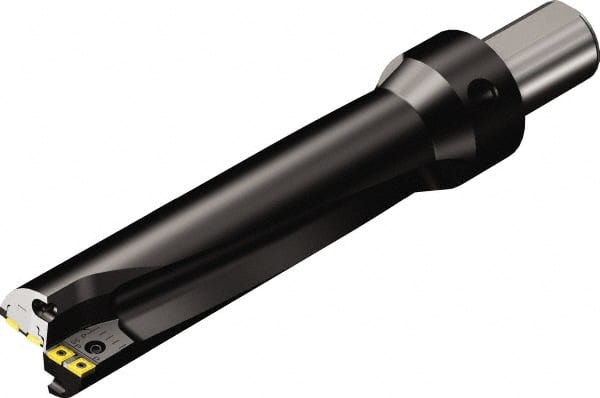

Sandvik Coromant - 237mm Max Drill Depth, 3xD, 79mm Diam, Indexable Insert Drill - 2 Inserts, 50mm Shank Diam, 50 Cylindrical Shank
Item #: 49536691
Brand: Sandvik Coromant
Model #: 6660350
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880-D..Lxx-03 |
| Drill Diameter (mm) | 79.00 |
| Drill Diameter (Decimal Inch) | 3.1102 |
| Maximum Drill Depth (mm) | 237.00 |
| Maximum Drill Depth (Decimal Inch) | 9.3307 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Modular Connection Size | 50 |
| Cutting Direction | 880-0704W06H-P-GM |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 2.8740 |
| Maximum Drill Diameter (mm) | 73.00 |
| Overall Length/Projection (mm) | 387.00 |
| Overall Length/Projection (Decimal Inch) | 15.2362 |
| Insert Compatibility | 880-070406H-C-GM; 880-0704W06H-P-GM |
| Body Length (Decimal Inch) | 10.0453 |
| Body Length (mm) | 255.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0 |
