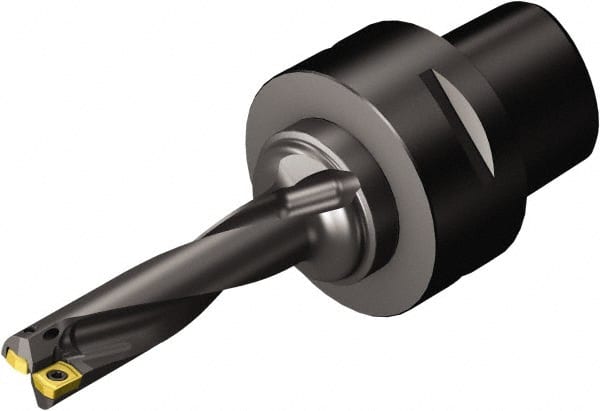

Sandvik Coromant - 51mm Max Drill Depth, 4xD, 12.7mm Diam, Indexable Insert Drill - C6 Coromant Shank
Item #: 49536774
Brand: Sandvik Coromant
Model #: 5765217
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880..Cx-04 (01) |
| Drill Diameter (mm) | 12.70 |
| Drill Diameter (Decimal Inch) | 0.5000 |
| Maximum Drill Depth (mm) | 51.00 |
| Maximum Drill Depth (Decimal Inch) | 2.0079 |
| Shank Type | Coromant |
| Modular Connection Size | C6 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.5000 |
| Maximum Drill Diameter (mm) | 12.70 |
| Overall Length/Projection (mm) | 126.00 |
| Overall Length/Projection (Decimal Inch) | 4.9606 |
| Insert Compatibility | 880-010203H-C-GR; 880-0102W04-P-GR |
| Flute Length (mm) | 60.22 |
| Flute Length (Decimal Inch) | 2.3709 |
| Body Length (Decimal Inch) | 2.0866 |
| Body Length (mm) | 53.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.25 |
