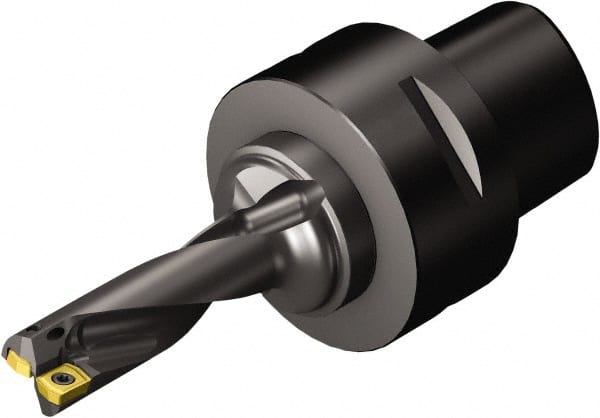

Sandvik Coromant - 41mm Max Drill Depth, 3xD, 13.5mm Diam, Indexable Insert Drill - C6 Coromant Shank
Item #: 49536790
Brand: Sandvik Coromant
Model #: 5764962
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880..Cx-03 (01) |
| Drill Diameter (mm) | 13.50 |
| Drill Diameter (Decimal Inch) | 0.5315 |
| Maximum Drill Depth (mm) | 41.00 |
| Maximum Drill Depth (Decimal Inch) | 1.6142 |
| Shank Type | Coromant |
| Modular Connection Size | C6 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.5310 |
| Maximum Drill Diameter (mm) | 13.50 |
| Overall Length/Projection (mm) | 117.00 |
| Overall Length/Projection (Decimal Inch) | 4.6063 |
| Insert Compatibility | 880-010203H-C-GR; 880-0102W04-P-GR |
| Flute Length (mm) | 51.70 |
| Flute Length (Decimal Inch) | 2.0354 |
| Body Length (Decimal Inch) | 1.7323 |
| Body Length (mm) | 44.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.25 |
