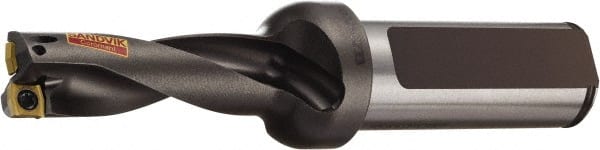

Sandvik Coromant - 57mm Max Drill Depth, 3xD, 19mm Diam, Indexable Insert Drill - 25mm Shank Diam, 25 Cylindrical Shank
Item #: 49537087
Brand: Sandvik Coromant
Model #: 5962312
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 881..Lxx-03 |
| Drill Diameter (mm) | 19.00 |
| Drill Diameter (Decimal Inch) | 0.7480 |
| Maximum Drill Depth (mm) | 57.00 |
| Maximum Drill Depth (Decimal Inch) | 2.2441 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Modular Connection Size | 25 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.9840 |
| Maximum Drill Diameter (mm) | 25.00 |
| Overall Length/Projection (mm) | 132.00 |
| Overall Length/Projection (Decimal Inch) | 5.1969 |
| Insert Compatibility | 881-03 03 08M-C-GM1; 881-03 03 08M-P-GM1 |
| Body Length (Decimal Inch) | 2.3622 |
| Body Length (mm) | 60.00 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 0.8 |
