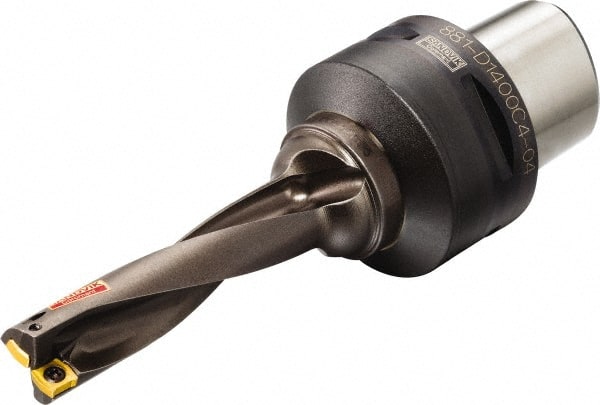

Sandvik Coromant - 80mm Max Drill Depth, 4xD, 20mm Diam, Indexable Insert Drill - C4 Coromant Shank
Item #: 49537111
Brand: Sandvik Coromant
Model #: 5962326
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 881..Cx-04 |
| Drill Diameter (mm) | 20.00 |
| Drill Diameter (Decimal Inch) | 0.7874 |
| Maximum Drill Depth (mm) | 80.00 |
| Maximum Drill Depth (Decimal Inch) | 3.1496 |
| Shank Type | Coromant |
| Modular Connection Size | C4 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.7870 |
| Maximum Drill Diameter (mm) | 20.00 |
| Overall Length/Projection (mm) | 155.00 |
| Overall Length/Projection (Decimal Inch) | 6.1024 |
| Insert Compatibility | 881-03 03 08M-C-GM1; 881-03 03 08M-P-GM1 |
| Body Length (Decimal Inch) | 3.3071 |
| Body Length (mm) | 84.00 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 0.75 |
