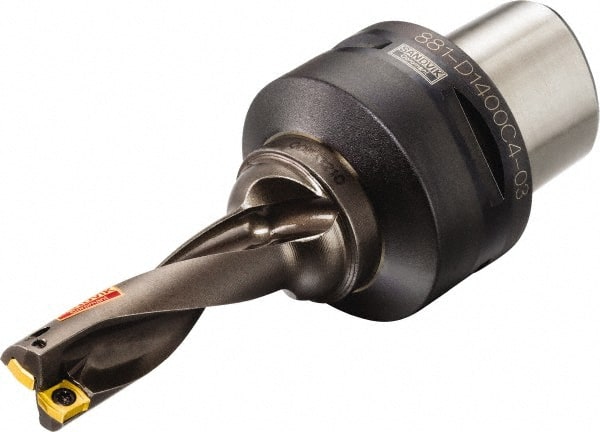

Sandvik Coromant - 63mm Max Drill Depth, 3xD, 21mm Diam, Indexable Insert Drill - C4 Coromant Shank
Item #: 49537129
Brand: Sandvik Coromant
Model #: 5962336
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 881..Cx-03 |
| Drill Diameter (mm) | 21.00 |
| Drill Diameter (Decimal Inch) | 0.8268 |
| Maximum Drill Depth (mm) | 63.00 |
| Maximum Drill Depth (Decimal Inch) | 2.4803 |
| Shank Type | Coromant |
| Modular Connection Size | C4 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.8270 |
| Maximum Drill Diameter (mm) | 21.00 |
| Overall Length/Projection (mm) | 138.00 |
| Overall Length/Projection (Decimal Inch) | 5.4331 |
| Insert Compatibility | 881-04 03 08M-C-GM1; 881-04 03 08M-P-GM1 |
| Body Length (Decimal Inch) | 2.5984 |
| Body Length (mm) | 66.00 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 1.5 |
