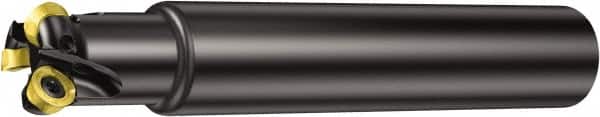

Sandvik Coromant - 32mm Cutting Diam, 5mm Max Depth of Cut, 32mm Diam Cylindrical Shank, Indexable Copy End Mill - Screw Holding Method, 600-1045 Insert Style, 600..Axx Toolholder, Through Coolant
Item #: 49538689
Brand: Sandvik Coromant
Model #: 6252656
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Number of Cutter Inserts | 4 |
| Insert Style | 600-1045 |
| Toolholder Style | 600..Axx |
| Overall Length (mm) | 190.00 |
| Overall Length (Decimal Inch) | 7.4803 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (mm) | 22.00 |
| Head Length (Decimal Inch) | 5.1181 |
| Maximum RPM | 17400 |
| Maximum Cutting Diameter (Decimal Inch) | 1.25984 |
| Minimum Cutting Diameter (Decimal Inch) | 0.8661 |
| Projection (mm) | 130.00 |
| Projection (Decimal Inch) | 5.1181 |
