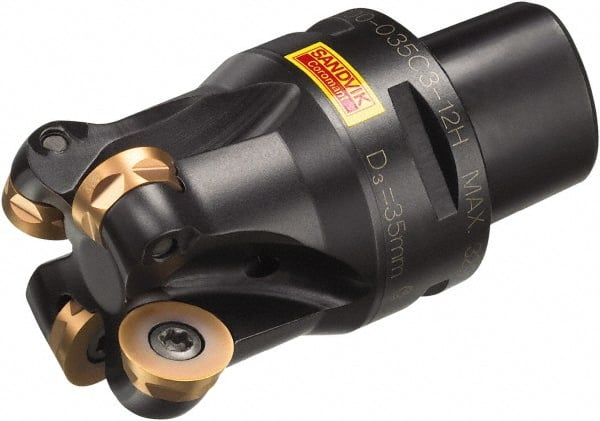

Sandvik Coromant - 42mm Cutting Diam, 5mm Max Depth of Cut, C4 Modular Connection, Indexable Copy End Mill - Screw Holding Method, R300-1032.. Insert Style, R300..Cx Toolholder, Through Coolant
Item #: 49539067
Brand: Sandvik Coromant
Model #: 5744378
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 42.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Shank Type | Modular Connection |
| Number of Cutter Inserts | 5 |
| Insert Style | R300-1032.. |
| Toolholder Style | R300..Cx |
| Overall Length (mm) | 74.00 |
| Overall Length (Decimal Inch) | 2.9134 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Number of Flutes | 5 |
| Minimum Cutting Diameter (mm) | 32.00 |
| Head Length (Decimal Inch) | 1.9685 |
| Maximum RPM | 37200 |
| Maximum Cutting Diameter (Decimal Inch) | 1.65354 |
| Minimum Cutting Diameter (Decimal Inch) | 1.2598 |
| Projection (mm) | 50.00 |
| Projection (Decimal Inch) | 1.9685 |
| Modular Connection Size | C4 |
